Description
This beautiful traditional 2 dial 1 way concealed thermostatic shower valve will add the perfect elegant touch to your bathroom. with its concealed body hidden within the wall it will give your bathroom a much cleaner & simpler look. The valve offers thermostatic showering via two easy-to-operate controls. with separate controls for temperature and flow.
Key Features
- Top dial – controls water to 1 outlet diverter
- Bottom dial – temperature control
- High quality design
- Thermostatically controlled

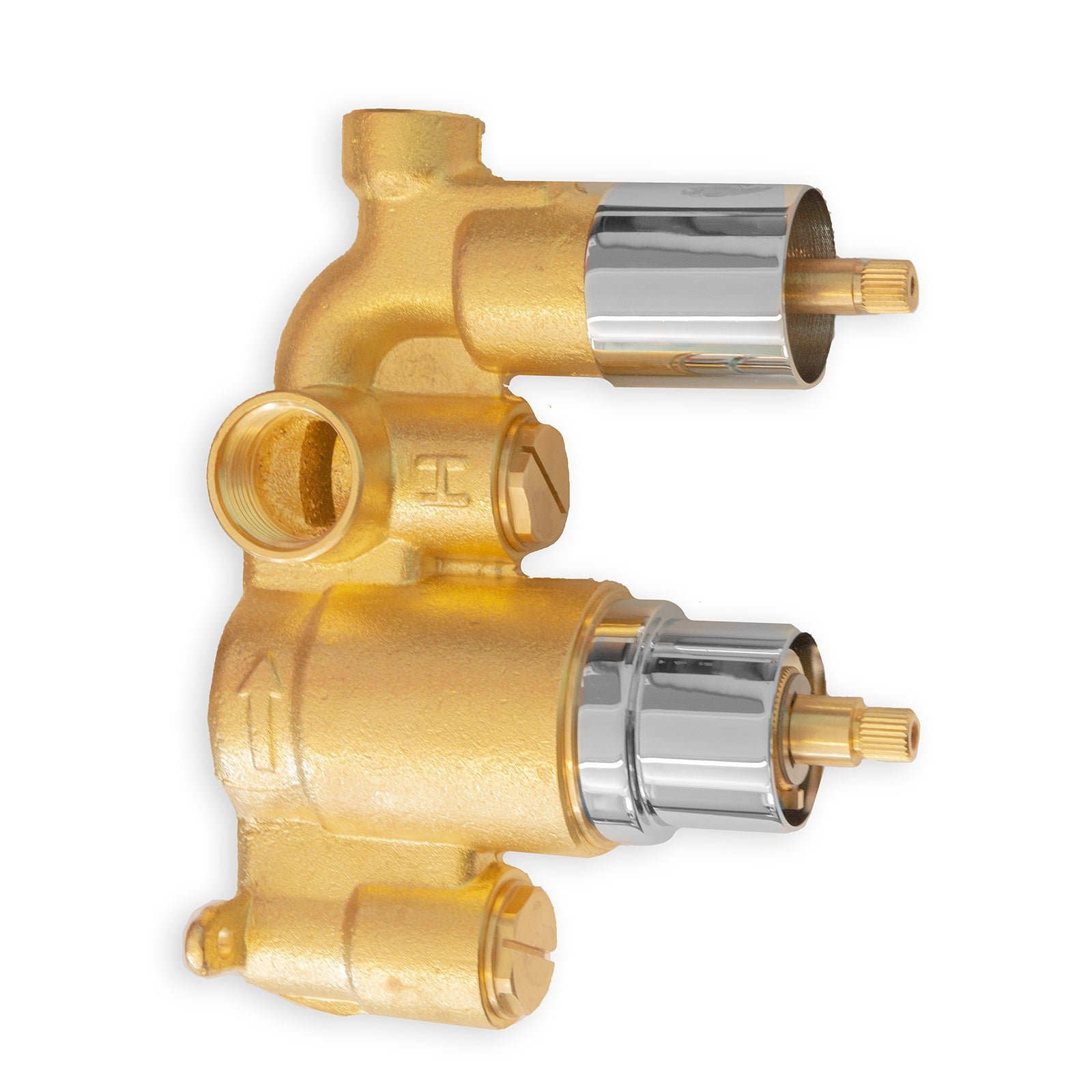

- Manufactured from highly durable brass
- 90mm – 110mm expandable depth

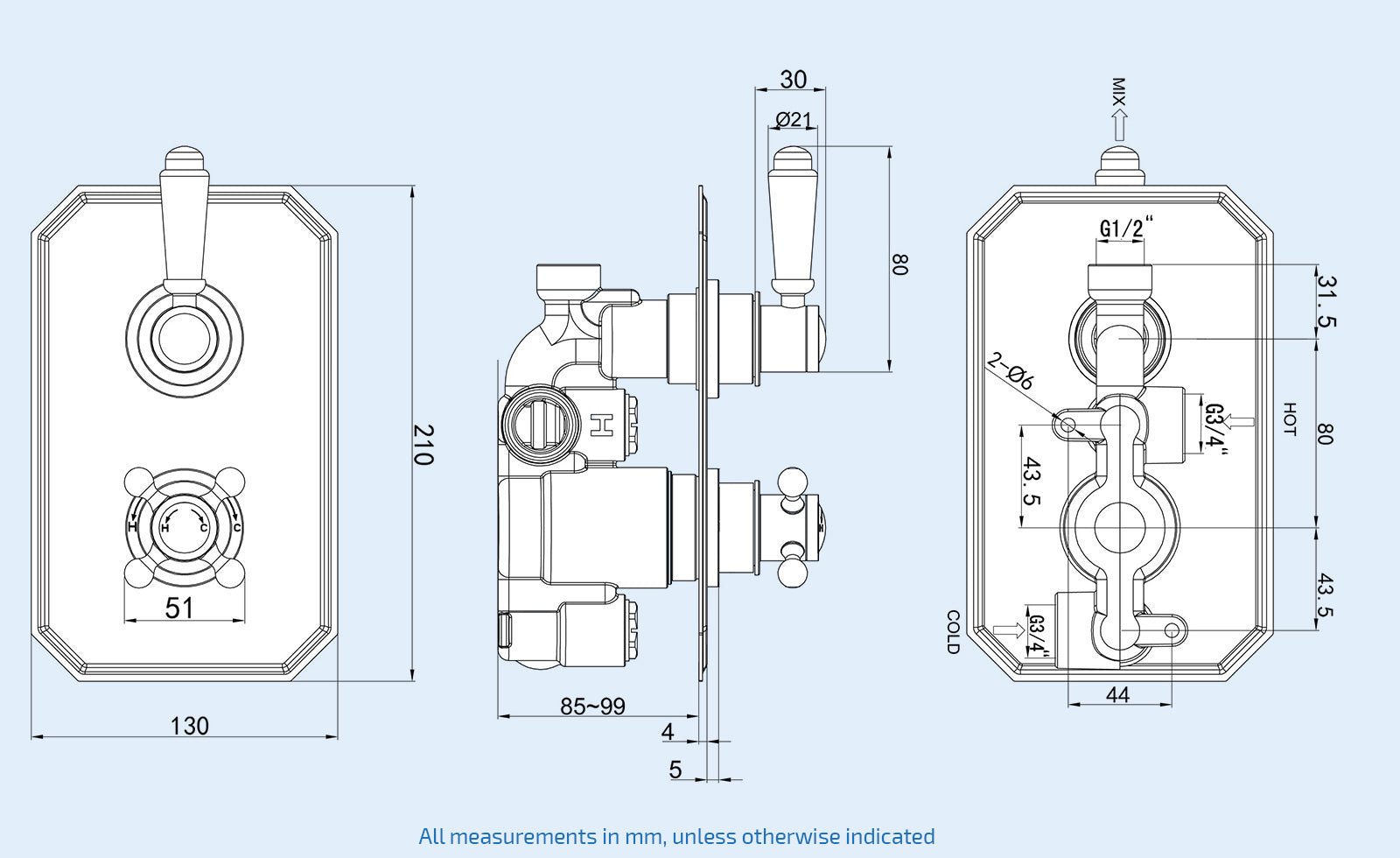

- Panel dimensions: 210mm x 130mm
- Operating range 20 – 50 deg C with 38 deg C safety button
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting
Suitable for the following water systems
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum of 1.0 bar water pressure
Package Contents
- Thermostatic valve
Reviews
There are no reviews yet.
