Description
This concealed thermostatic valve will compliment any modern bathroom suite and offers thermostatic showering via two easy-to-operate controls for temperature and flow. Supplied with an Ultra Thin shower head with swivel joint and arm. Rail Shower Set + 1.5 M Hose. solid brass round bath filler wall spout.
Please note: This product comes with a 10-year guarantee.
Thermostatic Valve
- Top Dial – Controls water to 1 outlet diverter
- Middle Dial – temperature control
- Bottom Dial – Controls water to 2 outlet diverters
- High-Quality Design
- Chrome Finish
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 – 50 deg C with 38 deg C safety button
- Built-in nonreturn valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature is maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in the event of water cold supply failure
- UK standard size fitting

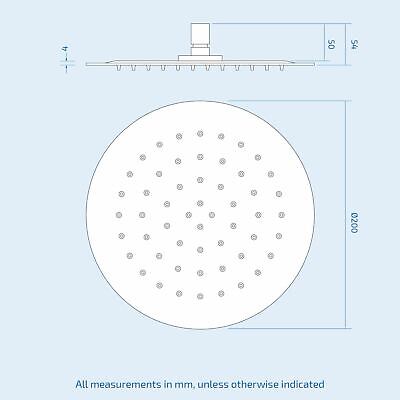

Ultra Thin Shower Head With Wall Arm
- Shower head dimensions – 200mm x 200mm
- Chrome Finish
- Solid Brass Arm Length – 300mm
- Subject to a minimum of 1.0 bar water pressure

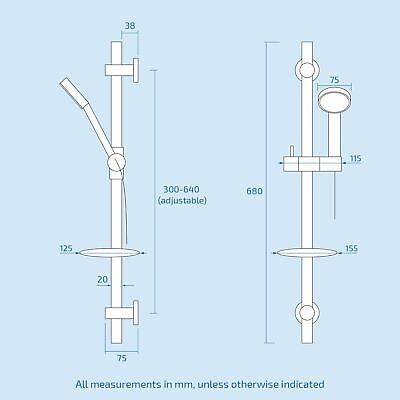

Slide Rail Shower Kit
- Stainless Steel Slide Rail
- Brass Wall Outlet Elbow
- 3 Mode Handset: Bubble spray. Massage spray. Saturating spray
- 1.5m Double Interlock Hose
- Chrome Finish
- 690 mm (H)
Suitable For The Following Water Systems
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum of 1.0 bar water pressure
Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Ultra thin shower head
- 1 x 3 Mode Multifunctional handset
- 1 x Wall mounted arm
- 1 x Slider rail
- 1 x Bath filler
