Description

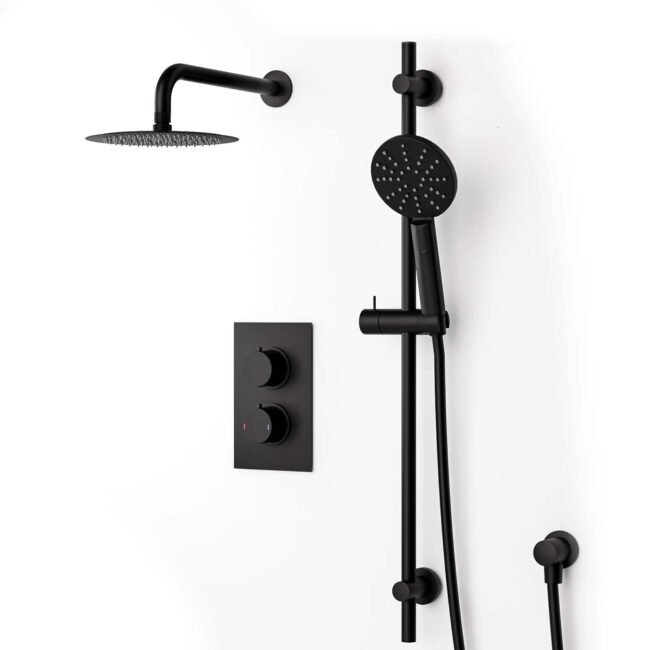

This stunning matt black slim round concealed thermostatic mixer valve shower set is a perfect addition to any modern designer bathroom. The concealed shower valve has two easy controls. for temperature and flow. The valve body comes with a contemporary square face plate.
Key Features
- Black matte finish
- Durable and solid brass construction
- Top Dial – controls water to 2 outlet diverter
- Bottom Dial – temperature control
- Slim Shower Head Design
Specifications

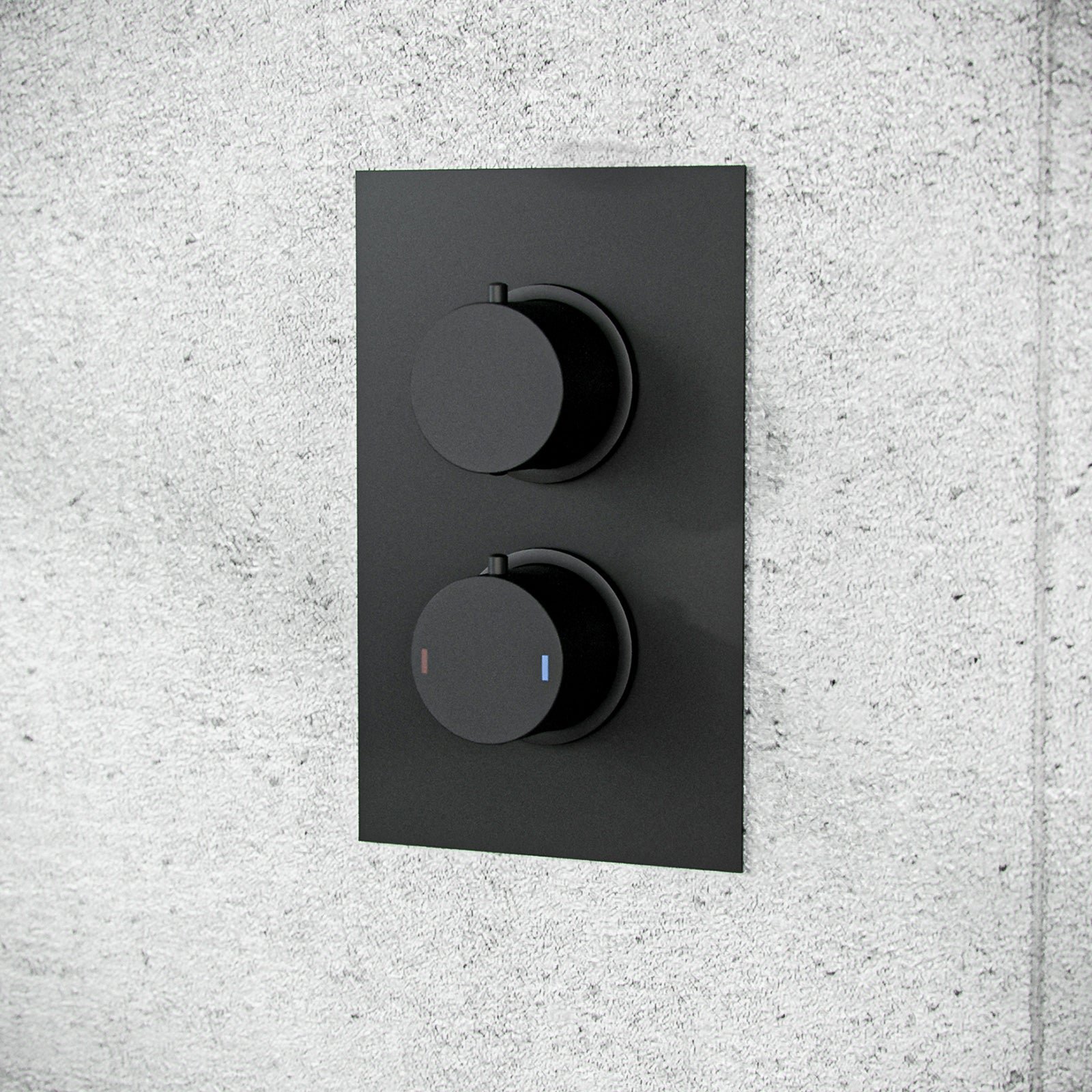

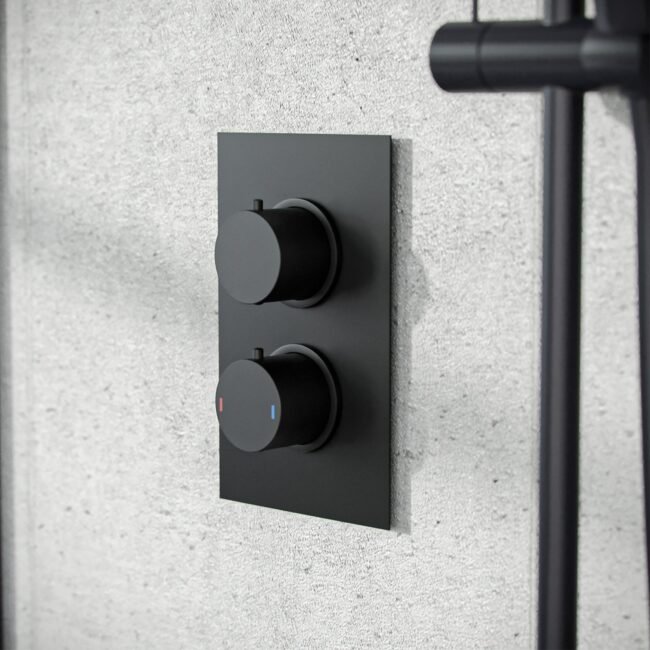

Concealed Thermostatic Mixer Valve
- Height: 210mm
- Width: 130mm
- Dial Depth: 40mm
- Finish: Matte Black
- Thermostatically controlled
- Operating range 20 – 50 deg C with 38 deg C safety button
- Chosen temperature maintained to within +/-1ºC.
- Automatic shut off in event of water cold supply failure
- UK standard size fitting. Inlet 3/4. Outlet 3/4
Slider Rail
- Sliding angle adjustable handset bracket
- Handset – 3 mode function
- Matt black handset. with rubber easy clean nozzles
- braided. flexible 1.5m double interlocking shower hose
- Finished in matt black
- UK standard size fitting

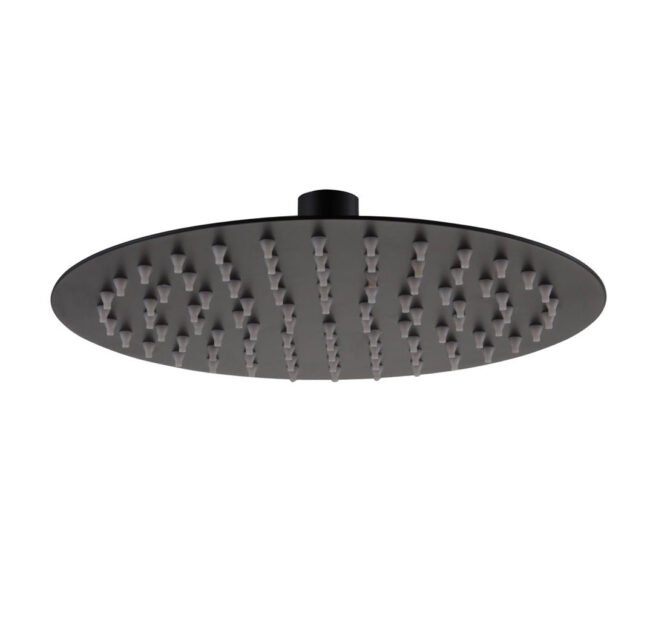

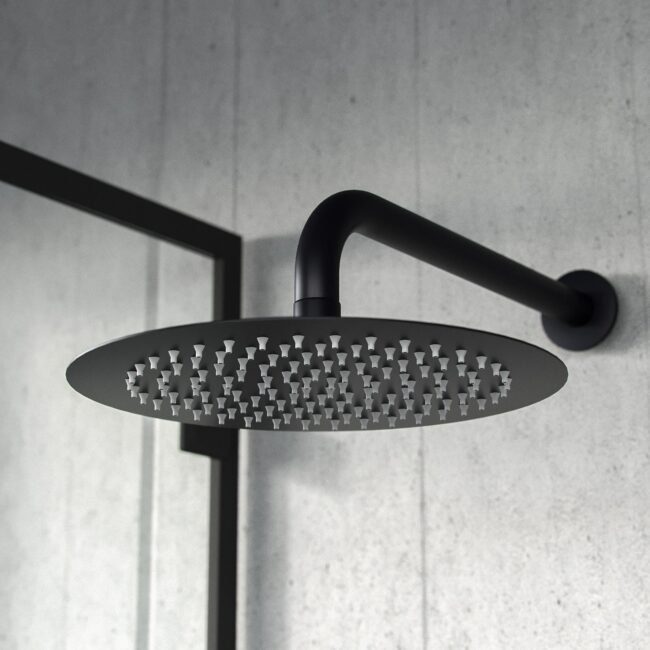

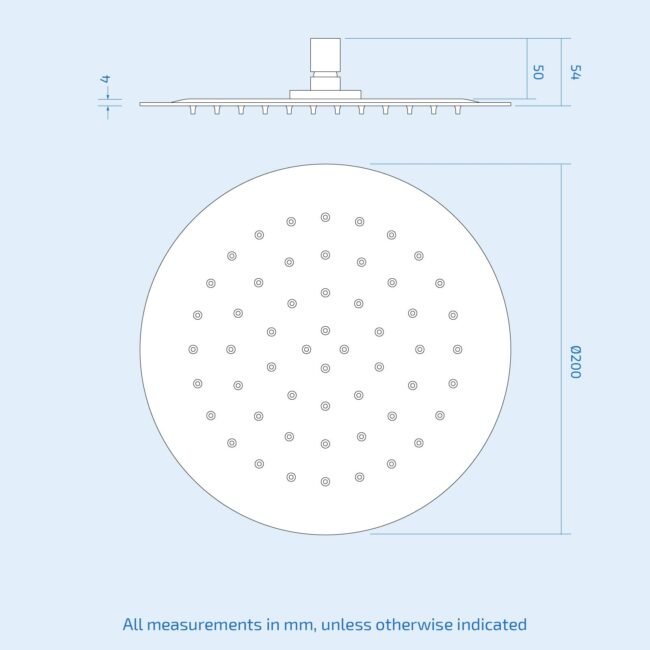

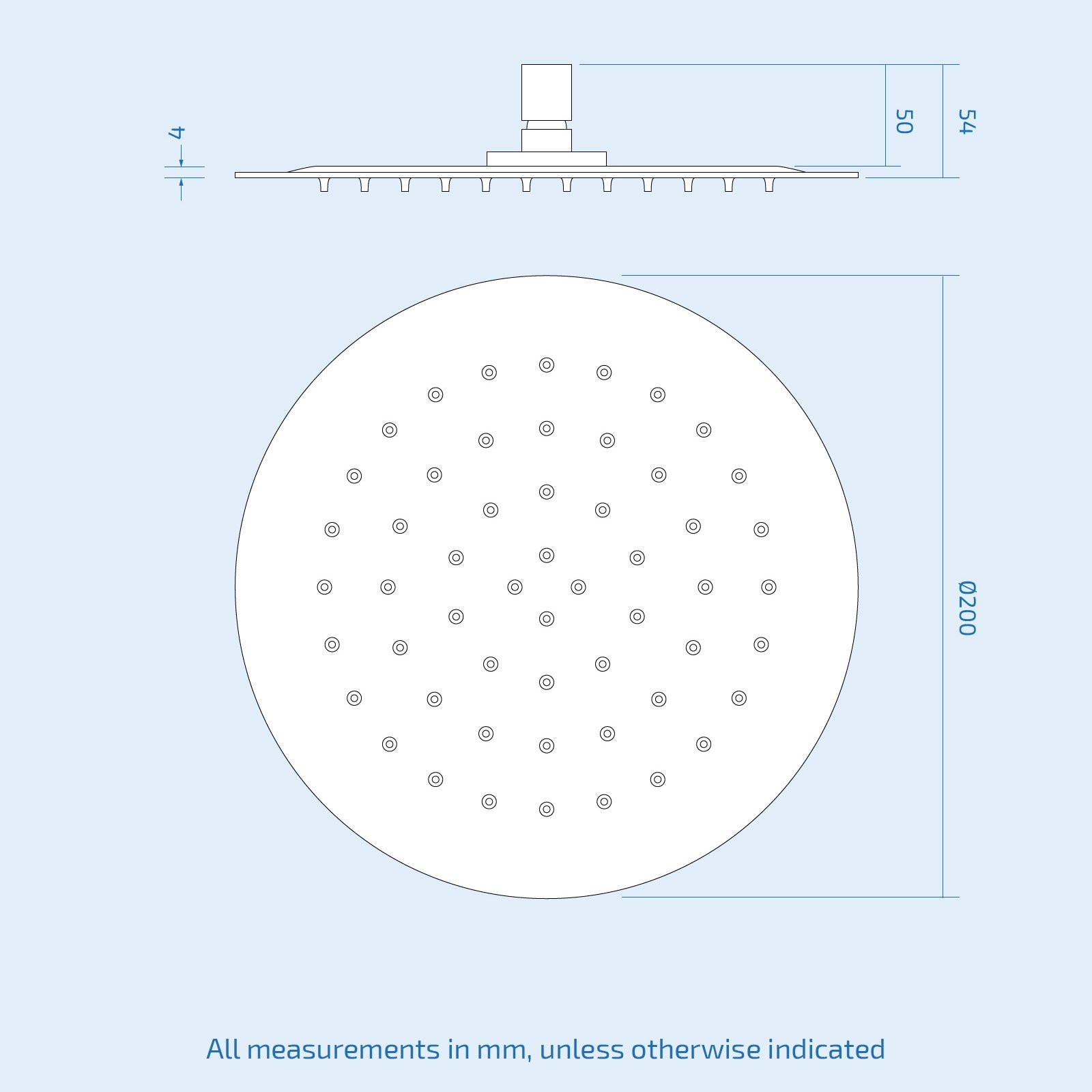

Shower Arm & Head
- Arm Length : 300mm
- Shower Head : 200mm
- Finish : Matte Black
- Single mode shower head with swivel joint
- Brass swivel elbow
- Rub clean anti scale nozzles
- UK standard size fitting
- Mount : Wall
- 40mm Thread
- 1/2 Inch Shower Head Connection
Round Wall Outlet Elbow
- Wall mounted via matching wall plate
- Hose connection without handset holder
- Solid brass body construction making them durable and long lasting
- Finished in a matt black
- Safe and easy to use
- Easy to clean and install
- UK standard size fitting – 1/2 BSP outlet
Technical Information: Suitable For The Following Water Systems:
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum pressure of 0.5 bar to maximum 7.0 bar
Package Contents
- Concealed Thermostatic Mixer Valve
- Shower Head
- Handset
- Shower Arm
- Slider Rail
- Round Wall Outlet Elbow
