Temel Twin Head Matte Black Rainfall Shower Concealed Mixer Valve 3 Dial 2 Way

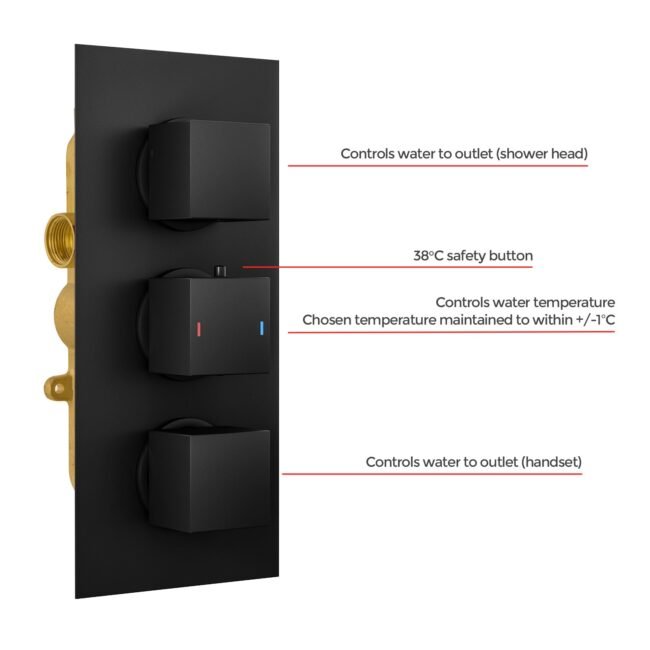

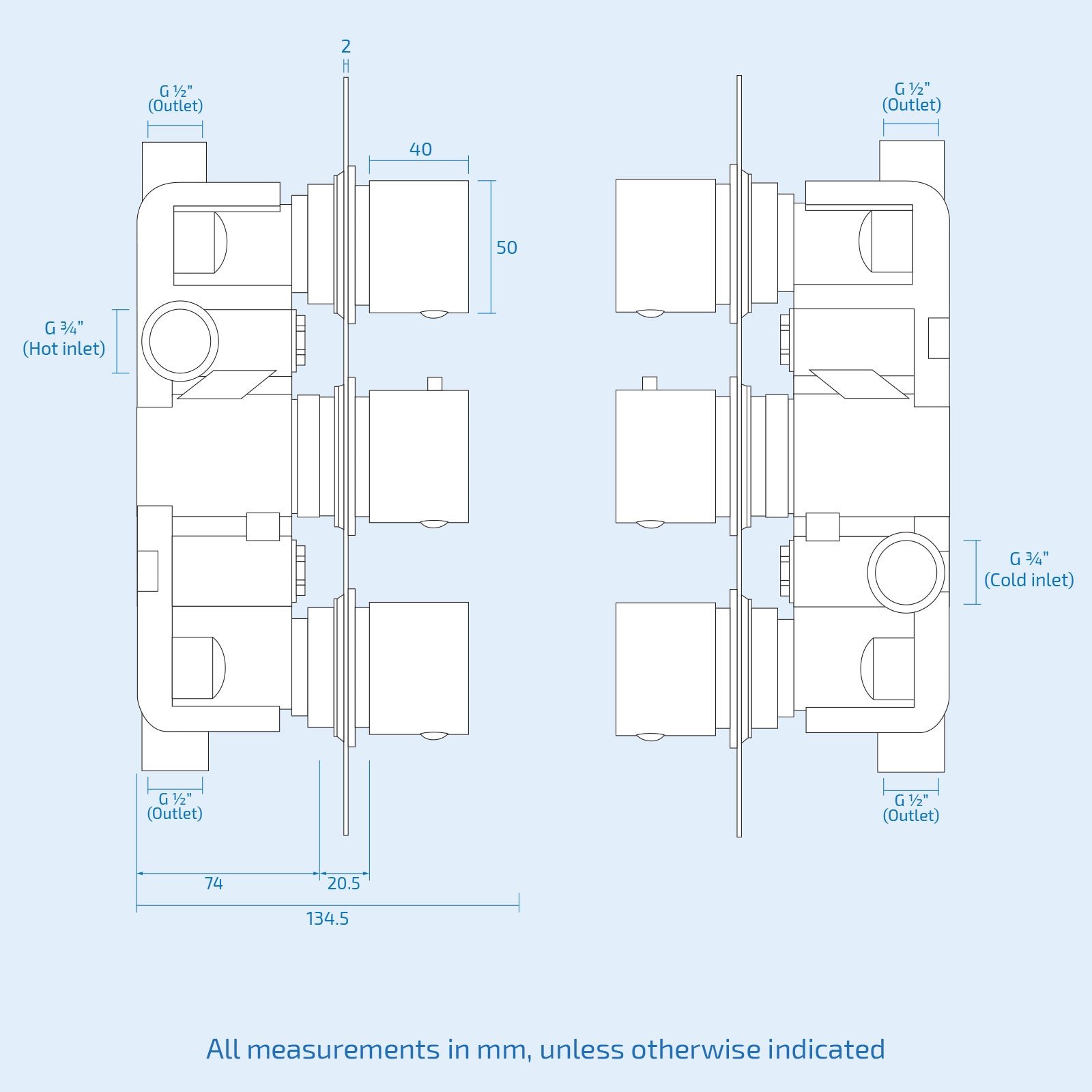

Concealed Thermostatic Shower Mixer

• Thermostatic Concealed Valve
• Top dial – Controls water to outlet (shower head)
• Middle dial – Controls temperature
• Bottom dial – Controls water to outlet (Handset)
• The two outlets can be operated simultaneously
• Manufactured from highly durable solid brass
• Finished in matte black
• Tarnish and corrosion resistant
• Operating range 20-50°C. with 38°C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1°C
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting

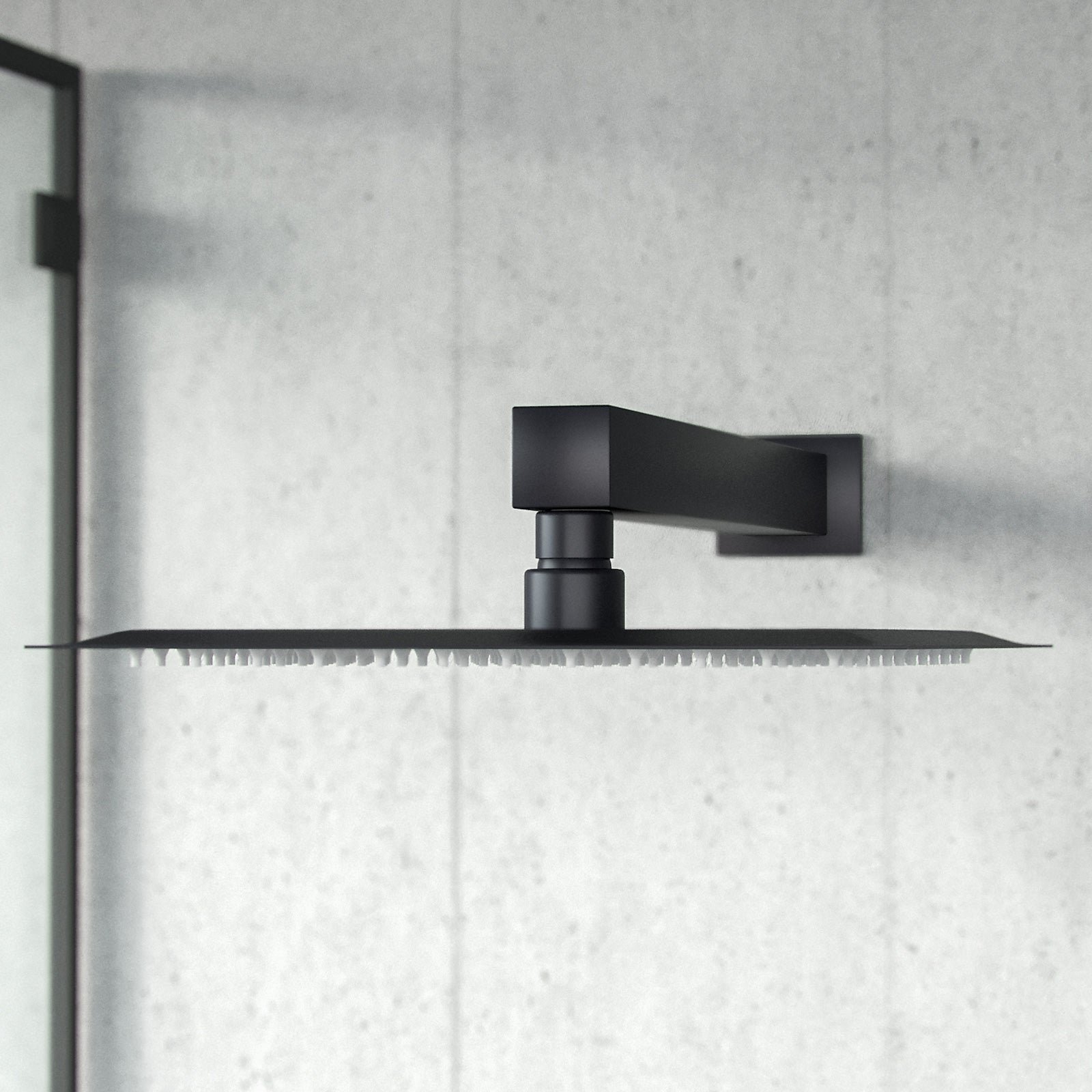

Shower Arm

• Square Design
• Solid Brass
• Matte Black Finish
• Wall Mounted
• Suitable For 8inch Or 9inch Shower Head
• 40mm Thread
• Easy To Install

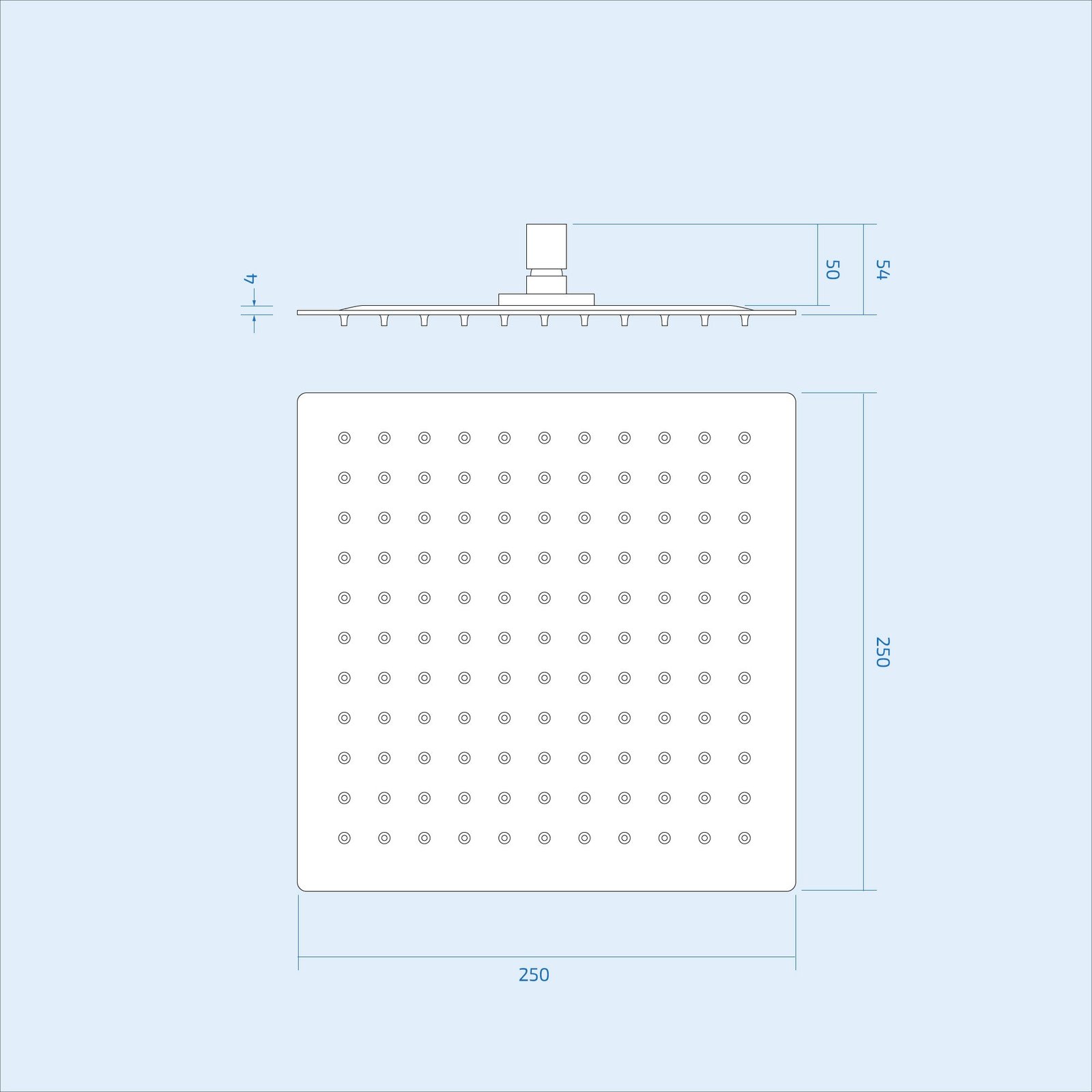

Slim Shower Head

• Modern stylish square design
• Single mode shower head with swivel joint
• Finished in matte black
• Crafted using superior quality materials
• Brass swivel elbow
• Rub clean anti scale nozzles
• UK standard size fitting
• Subject to a minimum pressure of 1 bar
• Combination boiler systems
• Gravity-fed systems (only with a pump)
• MegaFlo systems
• Pumped hot water systems
• Un-vented hot water systems
• Standard pressurised hot water cylinder type systems

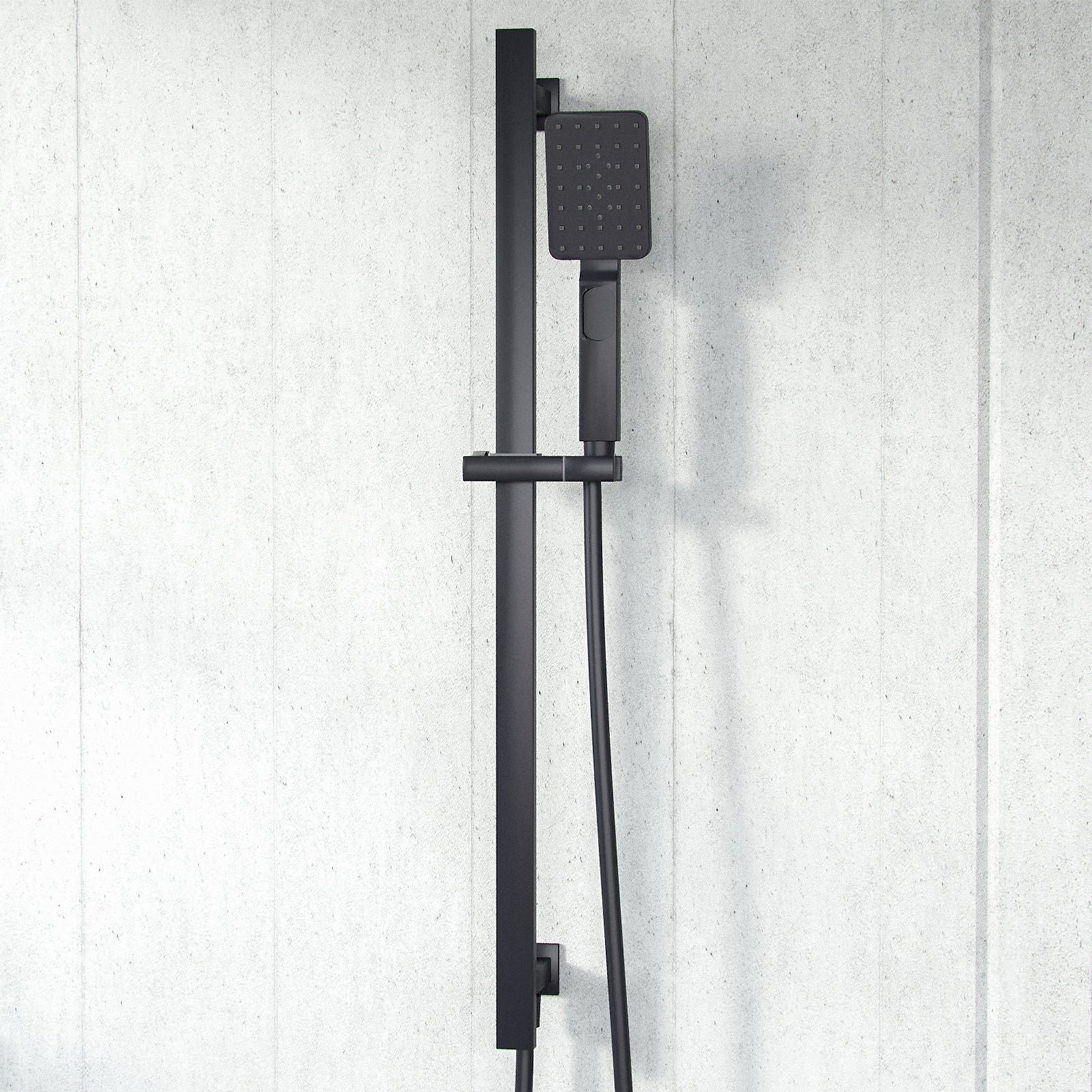

Shower Slider Riser Rail Bar

• Slider rail – solid brass body construction. making it durable and long lasting
• Built in outlet. integrated wall elbow. hose connection at the bottom end of rail
• Button on handset bracket to slide the holder and adjust the angle
• Handset – single function rectangle slimline solid brass
• Easy clean rubber nozzles
• Stainless steel. braided. flexible 1.5m double interlocking shower hose
• UK standard size fitting
• Suitable For The Following Water Systems
• Subject to a minimum pressure of 0.5 bar to maximum 3 bar
• Combination boiler systems
• Gravity fed systems (only with a pump)
• Megaflo systems
• Pumped hot water systems
• Un-vented hot water systems
• Standard pressurised hot water cylinder type systems

Package Contents

• 1 X Shower Arm
• 1 X Thermostatic valve
• 1 X Slider rail
• 1 X Handset
• 1 X Shower Hose
• 1 X Shower Head
