Description

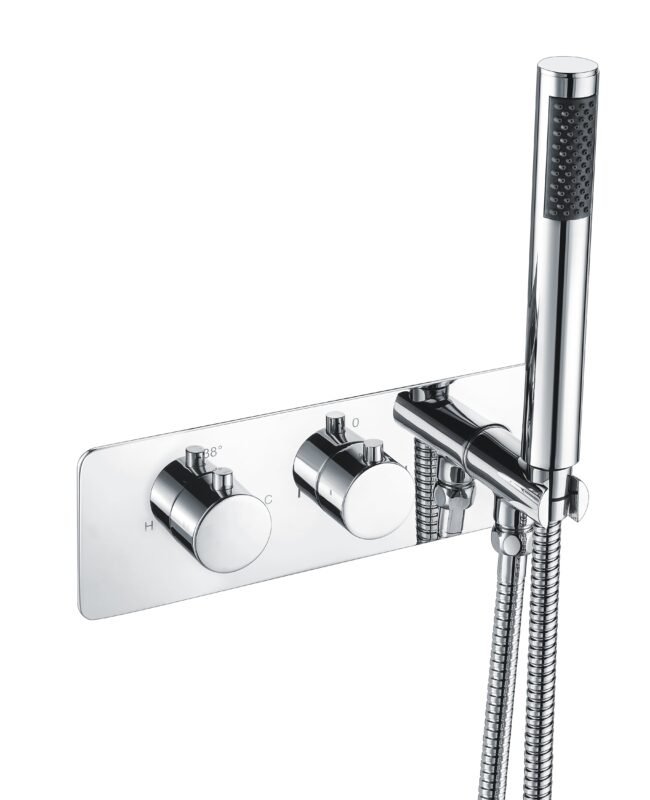

This Concealed thermostatic valve will compliment any modern bathroom suite. offering thermostatic showering via two easy-to-operate controls for temperature and flow.
Thermostatic Valve Features
- Left dial: Temperature control
- Middle Dial: Controls water flow
- High quality design
- Chrome finish
- Thermostatically controlled
- Manufactured from highly durable brass
- Hot supply temperature: 55-65ºC
- Cold supply temperature: 5-25ºC
- Maximum static pressure: 10 bar
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- UK standard size fitting
Water Flow Rates
| Flow Rates | 0.1 Bar | 0.5 Bar | 1 Bar | 1.5 Bar | 2 Bar | 3 Bar |
|---|---|---|---|---|---|---|
| 6.5 | 9.7 | 14 | 17.5 | 20.5 | 27 |
Suitable for the following water systems
- Combi-boilers
- Gravity fed systems
- MegaFlow systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Flow pressure. hot & cold: 0.5-5 bar
Package Contents
- 1 X Thermostatic valve
- 1 X Shower handset
- 1 X Bracket
- 1 X Shower hose
- 1 X Installation Guide
